MS콘넥터 제어반
본문 바로가기
전기.공압 보전파트

MS콘넥터 제어반

by 자동제어기 2023. 2. 1.
"
"
300x250
반응형

일반 제어기 판넬

냉각팬과 시그널 타워 버져 조합 CP 차단기 1식

NO                          단위 수량
1 AIR FAN SF11580AT EA 1
2 AIR FAN UF-12B12.AC110V EA 1
3 Tower Lamp HY-STC-TEB-02-03 EA 1
4 Tower Lamp Braket Steel EA 1
5 Buzzer KH-4065.A EA 1
6 Circuit Protectors DCP-32PR.100AMS EA 1
7 Circuit Protectors DCP-53BH.300ALW EA 1
8 Magnetic Relay GMC-22 EA 1
9 Magnetic Relay GMC-40 EA 1
10 DC Power supply VSF50-05 EA 1
11 DC Power supply VSF50-24 EA 1
12 Connector SRCN21-10P EA 1
13 Transformer WY22-1KVA EA 1
14 Solenoid Valve AB41-03-5 EA 1
15 Solenoid Valve SEV-603BX EA 1
16 Relay MY4N DC24V EA 1
17 Timer relay H3Y-4 DC24V EA 1
18 Relay socket KMY4 EA 1
19 Relay socket PYF14A EA 1
20 Digital Switch A7BS-207 EA 1
21 Color Cable 28AWG 50P 1
22 Color Cable 28AWG 50C.VW-1 1
23 LED Lamp LD-10.DC5V(RED) EA 1
24 LED Lamp LD-10.DC5V(YELLOW) EA 1
25 LED Lamp LD-10.DC5V(GREEN) EA 1



일반 제어기 판넬

공기압제어기 에어 실린더  방향절환 밸브

                         수 량
에어실린다 KCS-LB40B-600-N40 1
에어실린다 KCS-LB40B-1400-N40 1
에어실린다 KCS-LB40B-1400-N40 1
에어실린다 KCS-LB40B-1,700-N40 1
에어실린다 KCS-LB40B-1,900-N40 1
에어실린다 KCS-LB50B-2,500-N40 1
에어유니트(Air Unit) W3000-10 1
에어밸브 4F240-08,DC24V(5Way) 1
에어밸브 SF2120-025G 1
에어밸브 SF5130-035G 1
에어밸브 2WAY SOL V/V(개폐기) VPW(1").NO밸브.DC24V 1
에어밸브 3WAY SOL V/V(개폐기) VPW(1*1/4").NO밸브.DC24V 1
에어밸브 4WAY SOL V/V(개폐기) VPW(1*1/4").NO밸브.DC24V 1
에어밸브 5WAY SOL V/V(개폐기) VPW(1*1/2").NO밸브.DC24V 1
쇽압쇼바 UPA2525 1
냉각개폐기(PENUMATIC V/V) TX350-05DA-10S-SVDC24 1
냉각개폐기(PENUMATIC V/V) TX350-05DA-10S-SVDC24 1
스피드콘트롤라 SC1-10 1



MS 콘넥터는  암페놀 사 외 국산 제품도 있습니다

엠페놀 ms 콘넥터.pdf
2.13MB



제어기 판넬

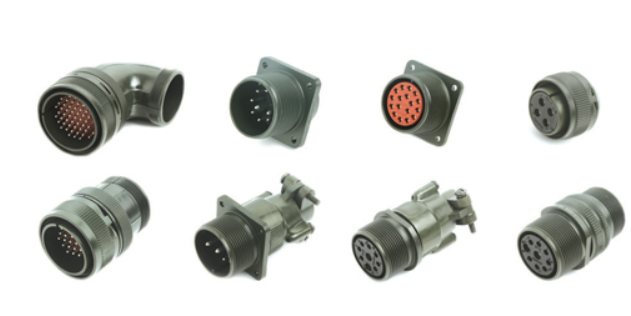

암페놀 콘넥터 YH3100 - Wall Mounting Receptacle 시리즈별 사진
YH 시리즈 MS 콘넥터

YH Number Shell Style

YH3100 - Wall Mounting Receptacle

YH3101 - Cable Comnnecting Plug

YH3102 - Box mounting Receptacle

YH3106 - Straigt Plug

YH3108 - 90°Angle Plug

MS 콘넥터와  삼우 LS 산전 부품.

NO                          수 량
1 CONNECTOR MS3102A 22-2S 1
2 CONNECTOR MS3108A 22-2P 1
3 CONNECTOR MS3102A 22-2P 1
4 CONNECTOR MS3108A 22-2S 1
5 CONNECTOR MS3102A 20-19S 1
6 CONNECTOR MS3108A 20-19P 1
7 CONNECTOR MS3102A 20-19P 1
8 CONNECTOR MS3108A 20-19S 1
9 CONNECTOR SRCN25-16 1
10 마그네트릴레이 GMC-40 AC110V 1
11 DC-DC CONVERTER PC1R5-24-5 1
12 CONNECTOR SMW250-04D 1
13 CONNECTOR SMW250-05D 1
14 CONNECTOR SMW250-07D 1
15 CONNECTOR SMW250-09D 1
16 CONNECTOR SMW250-10D 1
17 CONNECTOR YAW396-03V 1
18 CONNECTOR YAW396-04V 1



제어기 판넬 4

파워 서플라이 트랜스 퍼머

NO                          수 량
1 Power Supply VSF30-24 1
2 Power Supply VSF50-24 1
3 Transformer WY22-50AF 1
4 Transformer WY22-1KAF 1
5 Transformer WY22-100AF 1
6 Noise Flter CA5-W32 1
7 Circuit Breaker DCP32PR-050AMS 1
8 Relay MY4N-24VDC(Socket포함) 1
9 Square LED KH5020L-24Y(STAND BY) 1
10 Square LED KH5020L-24R("NG") 1
11 Square LED KH5020L-24G("GO") 1
12 Operation Box KCB-253D 1
13 Terminal Block KH-6020-3 1
14 RPM Meter MP5W-48 1
15 Power Connector K25-04 1
16 Input Power Connector K20-03 1
17 Load Power Connector K20-04 1
18 Power Connector 0717 250V 1
19 D SUB Connector HDCB-37P(Rohs제품별도) 1
20 D SUB Connector HDCB-37S(Rohs제품별보) 1
21 D SUB Connector HDEB-9P(Cap포함) 1
22 D SUB Connector HDEB-9S(Cap포함) 1
23 MC Connector MC-12 1
24 MC Connector MC-8 1



제어기 판넬

냉각팬과 DIP 스위치 마그네트 차단기 타워 램프

오므론 미니 타이머와 조합

                         수량
AIR FAN SF11580AT 1
AIR FAN UF-12B12.AC110V 1
Tower Lamp HY-STC-TEB-02-03 1
Tower Lamp Braket Steel 1
Buzzer KH-4065.A 1
Circuit Protectors DCP-32PR.100AMS 1
Circuit Protectors DCP-53BH.300ALW 1
Magnetic Relay GMC-22 1
Magnetic Relay GMC-40 1
DC Power supply VSF50-05 1
DC Power supply VSF50-24 1
Connector SRCN21-10 1
Transformer WY11-1KVA 1
Solenoid Valve AB41-03-5 1
Solenoid Valve SEV-603BX 1
Relay MY4N DC24V 1
Timer relay H3Y-4 DC24V 1
Relay socket KMY4 1
Relay socket PYF14A 1
Digital Switch A7BS-207 1
Color Cable 28AWG 50P 1
Color Cable 28AWG 50C.VW-1 1
LED Lamp LD-10.DC5V(RED) 1
LED Lamp LD-10.DC5V(YELLOW) 1
LED Lamp LD-10.DC5V(GREEN) 1



제어기 판넬 7

표시 램프외 히로세 콘넥터 1식

                         수량
LED Lamp LD-10.DC24V(RED) 1
LED Lamp LD-10.DC24V(YELLOW) 1
LED Lamp LD-10.DC24V(GREEN) 1
LED Lamp LD-14.DC24V(RED) 1
LED Lamp LD-14.AC120V(RED) 1
H.V Cable LS3239 40KVDC 300M 1
HRS Connector HIF3BA-10D-2.54R 1
HRS Connector HIF3BA-20D-2.54R 1
HRS Connector HIF3BA-30D-2.54R 1
HRS Connector PIN10-64ACP-2.54DS K 1
HRS Connector PIN10-64ACP-2.54DSA K 1
Terminal Block KH-6060-3P 1
Terminal Block KH-6030-3P 1
One touch fitting PC 08-02 1
One touch fitting PC 10-02 1
One touch elbow PL 06-02 1
One touch elbow PL 08-02 1
One touch elbow PL 10-02 1
One touch elbow PL 12-03 1
One touch elbow PL 16-04 1
One touch elbow PL 16-03 1
Capacitor 5uF 370VAC 1
Capacitor 10uF 370VAC 1
Capacitor 20uF 370VAC 1
Capacitor 30uF 370VAC 1
Capacitor 40uF 370VAC 1
